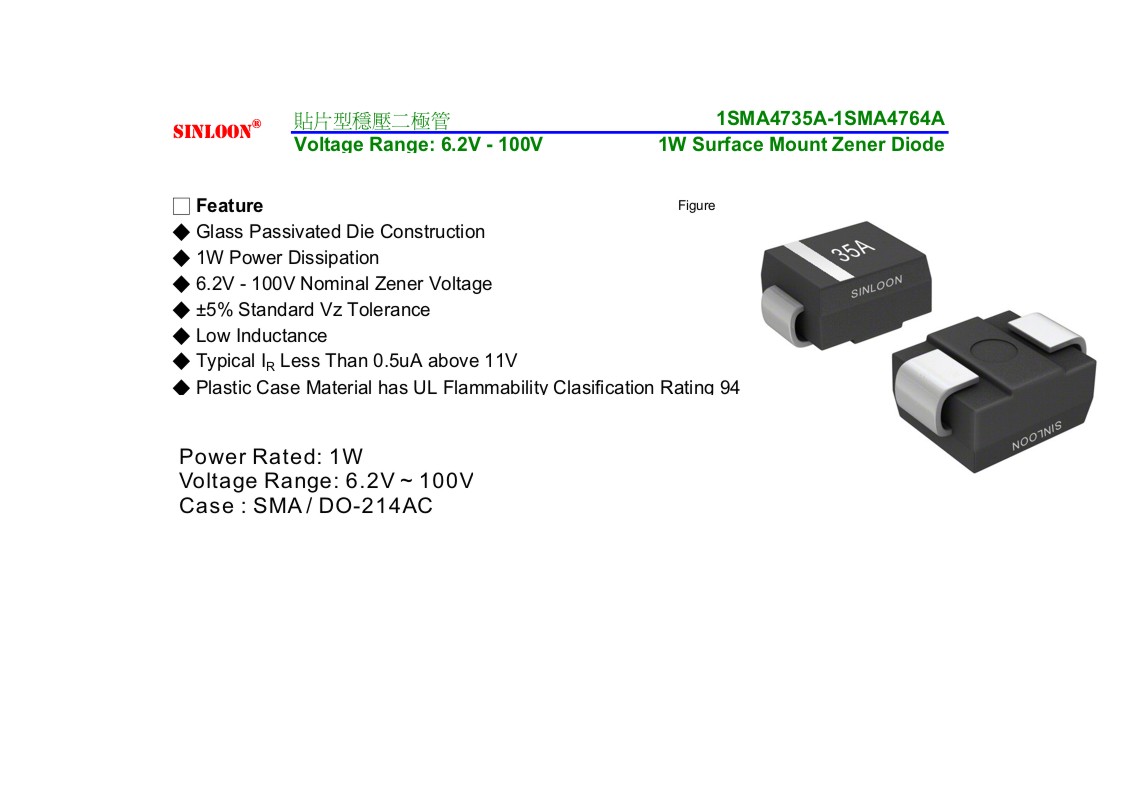

SMA/DO-214AC SURFACE MOUNT ZENER DIODE
| SINLOON® | 貼片型穩壓二極管 | 1SMA4735A-1SMA4764A | |||||||
| Voltage Range: 6.2V - 100V | 1W Surface Mount Zener Diode | ||||||||
| Maximum Ratings and Electrical Characteristics @TA=25℃ unless otherwise specified | |||||||||
| Type | Device | Nominal | Test | Maximum Zener Impedance | Leakage Current | Max. DC | |||
| Number | Marking | Zener | Current | (Note 3) | Current | ||||
| VZ@IZT | IZT | ZZT @ IZT | ZZK @ IZK | IZK | IR | @VR | IZM | ||
| (Note1) | Code | (V) ±5% | (mA) | (Ω) | (Ω) | (mA) | (μA) | (V) | (mA) |
| 1SMA4735A | 35A | 6.2 | 41.0 | 2.0 | 700 | 1.0 | 10 | 3.0 | 730 |
| 1SMA4736A | 36A | 6.8 | 37.0 | 3.5 | 700 | 1.0 | 10 | 4.0 | 660 |
| 1SMA4737A | 37A | 7.5 | 34.0 | 4.0 | 700 | 0.5 | 10 | 5.0 | 605 |
| 1SMA4738A | 38A | 8.2 | 31.0 | 4.5 | 700 | 0.5 | 10 | 6.0 | 550 |
| 1SMA4739A | 39A | 9.1 | 28.0 | 5.0 | 700 | 0.5 | 10 | 7.0 | 500 |
| 1SMA4740A | 40A | 10 | 25.0 | 7.0 | 700 | 0.25 | 10 | 7.6 | 454 |
| 1SMA4741A | 41A | 11 | 23.0 | 8.0 | 700 | 0.25 | 5.0 | 8.4 | 414 |
| 1SMA4742A | 42A | 12 | 21.0 | 9.0 | 700 | 0.25 | 5.0 | 9.1 | 380 |
| 1SMA4743A | 43A | 13 | 19.0 | 10.0 | 700 | 0.25 | 5.0 | 9.9 | 344 |
| 1SMA4744A | 44A | 15 | 17.0 | 14.0 | 700 | 0.25 | 5.0 | 11.4 | 305 |
| 1SMA4745A | 45A | 16 | 15.5 | 16.0 | 700 | 0.25 | 5.0 | 12.2 | 285 |
| 1SMA4746A | 46A | 18 | 14.0 | 20.0 | 750 | 0.25 | 5.0 | 13.7 | 250 |
| 1SMA4747A | 47A | 20 | 12.5 | 22.0 | 750 | 0.25 | 5.0 | 15.2 | 225 |
| 1SMA4748A | 48A | 22 | 11.5 | 23.0 | 750 | 0.25 | 5.0 | 16.7 | 205 |
| 1SMA4749A | 49A | 24 | 10.5 | 25.0 | 750 | 0.25 | 5.0 | 18.2 | 190 |
| 1SMA4750A | 50A | 27 | 9.5 | 35.0 | 750 | 0.25 | 5.0 | 20.6 | 170 |
| 1SMA4751A | 51A | 30 | 8.5 | 40.0 | 1000 | 0.25 | 5.0 | 22.8 | 150 |
| 1SMA4752A | 52A | 33 | 7.5 | 45.0 | 1000 | 0.25 | 5.0 | 25.1 | 135 |
| 1SMA4753A | 53A | 36 | 7.0 | 50.0 | 1000 | 0.25 | 5.0 | 27.4 | 125 |
| 1SMA4754A | 54A | 39 | 6.5 | 60.0 | 1000 | 0.25 | 5.0 | 29.7 | 115 |
| 1SMA4755A | 55A | 43 | 6.0 | 70.0 | 1500 | 0.25 | 5.0 | 32.7 | 110 |
| 1SMA4756A | 56A | 47 | 5.5 | 80.0 | 1500 | 0.25 | 5.0 | 35.8 | 95 |
| 1SMA4757A | 57A | 51 | 5.0 | 95.0 | 1500 | 0.25 | 5.0 | 38.8 | 90 |
| 1SMA4758A | 58A | 56 | 4.5 | 110.0 | 2000 | 0.25 | 5.0 | 42.6 | 80 |
| 1SMA4759A | 59A | 62 | 4.0 | 125.0 | 2000 | 0.25 | 5.0 | 47.1 | 70 |
| 1SMA4760A | 60A | 68 | 3.7 | 150.0 | 2000 | 0.25 | 5.0 | 51.7 | 65 |
| 1SMA4761A | 61A | 75 | 3.3 | 175.0 | 2000 | 0.25 | 5.0 | 56.0 | 60 |
| 1SMA4762A | 62A | 82 | 3.0 | 200.0 | 3000 | 0.25 | 5.0 | 62.2 | 55 |
| 1SMA4763A | 63A | 91 | 2.8 | 250.0 | 3000 | 0.25 | 5.0 | 69.2 | 50 |
| 1SMA4764A | 64A | 100 | 2.5 | 350.0 | 3000 | 0.25 | 5.0 | 76.0 | 45 |
|
|
|||||||||
