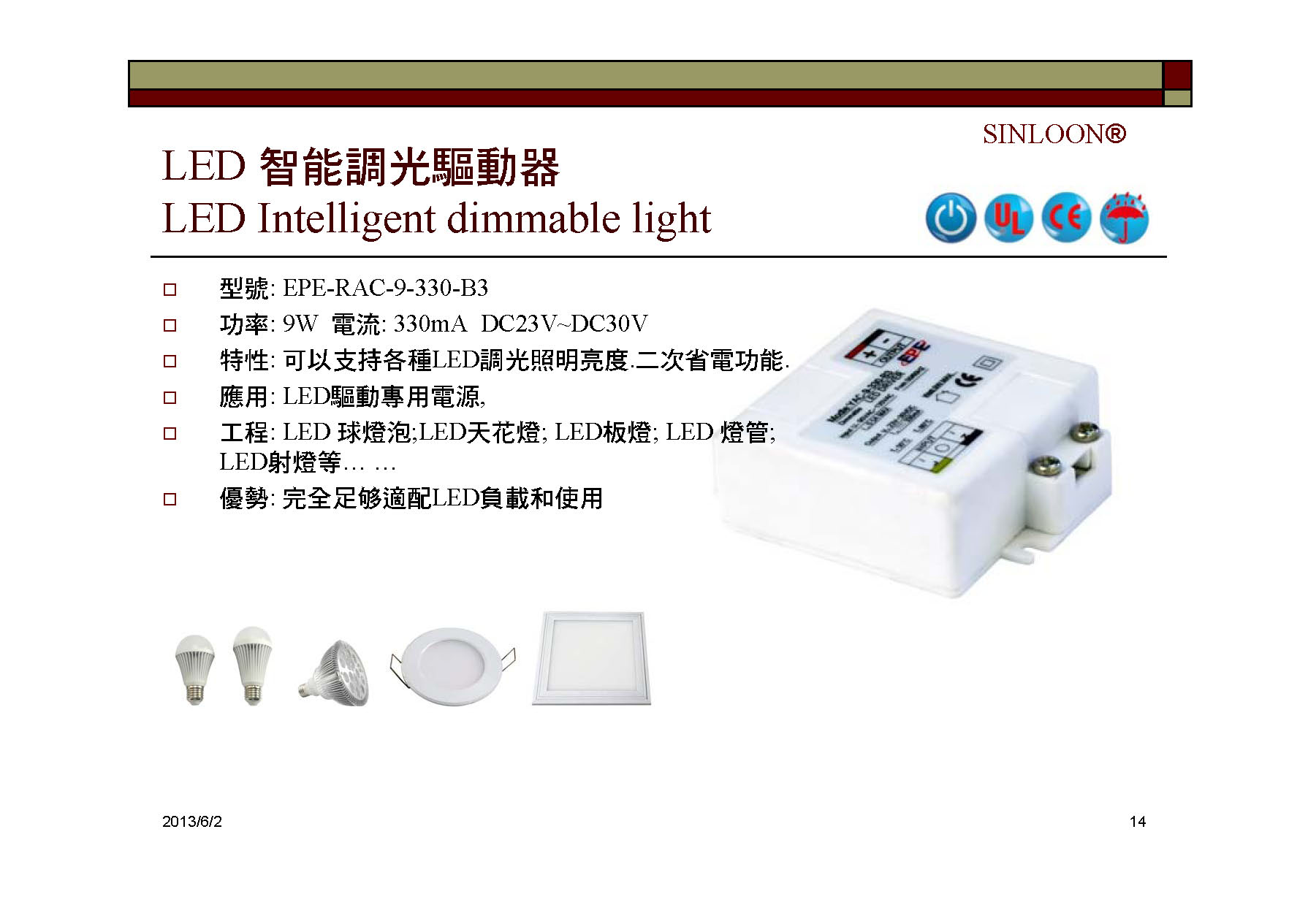

LED Intelligent dimmable light (LED智能調光系列)

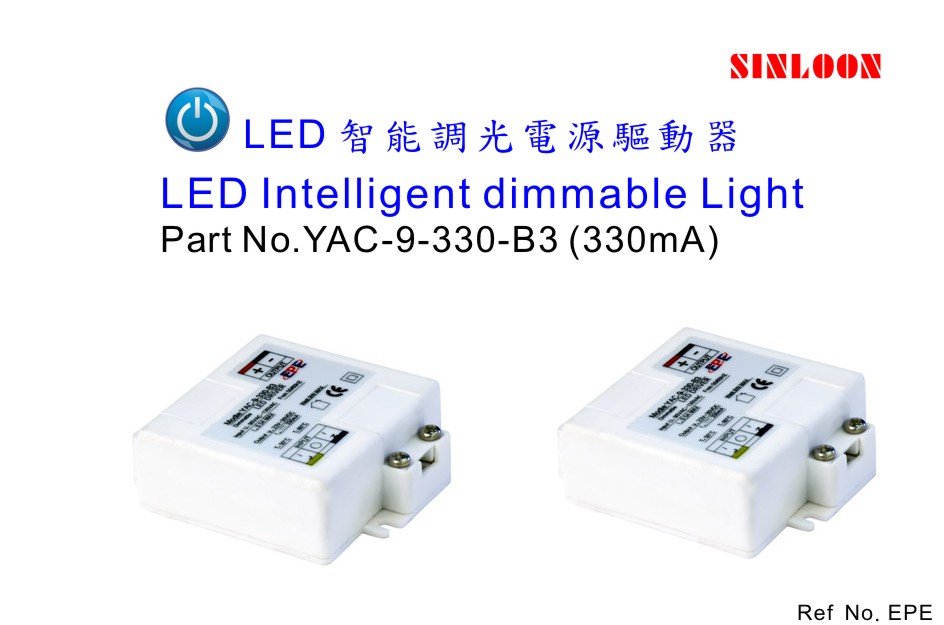

| SINLOON® | LED 可控硅調光控制器 | YAC-9-330-B3 | |||||
| LED Sillicon controlled dimming | |||||||
| 特點: | 自主研發設計電路佈置,功率因數高,穩定性強,高效能. | ||||||
| 應用: | 可以支持種調光 LED 照明亮度.. | ||||||
| 優勢: | 完全能夠满足適配LED負載和使用壽命,質保承諾. | ||||||
| 適用: | LED 燈泡球, LED天花燈,LED面板燈等… … | ||||||
| 認證: |  |
 |
 |
||||
| Model: | YAC-9-300-B3 | Figure | |||||
| Power Rated: | 9.0W |  |
|||||
| Efficiency: | >85% | ||||||
| PFC: | >0.98 | ||||||
| Temperature: | -25℃ ~ +60℃ | ||||||
| Input Voltage: | 90VAC ~ 130VAC | ||||||
| Output Voltage: | 23VDC ~ 30VDC | ||||||
| Output Current: | 330mA | ||||||
| Dimension: | 64 x 50 x 20mm | ||||||
| Remark: | If you would like more data specification please contact us | ||||||
| 如欲索取更多的產品參數資料請聯絡我們. | |||||||
 |
|
 |
 |
 |
 |
 |
|
