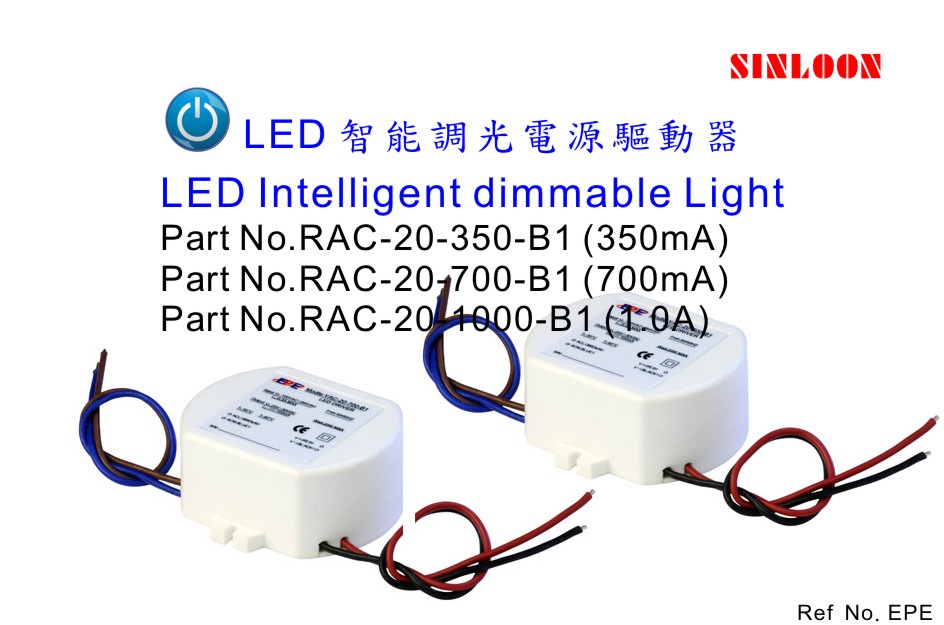

LED Intelligent dimmable light (LED智能調光系列)
| SINLOON® | LED 四段式調光控制器 | RAC-20-350-B1 | |||||
| Four - Section dimming Series | RAC-20-700-B1 | ||||||
| RAC-20-1000-B1 | |||||||
| 特點: | 自主研發設計電路佈置,功率因數高,穩定性強,高效能. | ||||||
| 應用: | 四段調光依序: 100%, 75%, 50%, 25% 達到二次節能效果. | ||||||
| 優勢: | 完全能夠满足適配LED負載和使用壽命,質保承諾. | ||||||
| 適用: | LED 天花燈, LED 燈泡球, LED燈管,LED面板燈等… … | ||||||
| 認證: |
|
 |
 |
||||
| Model: | RAC-20-B1 series | Figure | |||||
| Power Rated: | 20W |  |
|||||
| Efficiency: | >88% | ||||||
| PFC: | >0.98 | ||||||
| Temperature: | -25℃ ~ +50℃ | ||||||
| Input Voltage: | 85VAC ~ 305VAC | ||||||
| Output Voltage: | 10VDC ~ 18VDC | ||||||
| 20VDC ~ 40VDC | |||||||
| 40VDC ~ 60VDC | |||||||
| Output Current: | 350mA | ||||||
| 700mA | |||||||
| 1000mA | |||||||
| Dimension: | 150 x 30 x 14mm | ||||||
| Remark: | If you would like more data specification please contact us | ||||||
| 如欲索取更多的產品參數資料請聯絡我們. | |||||||
 |
 |
 |
|
 |
 |
 |
|
|
 |
|
 |
||||
