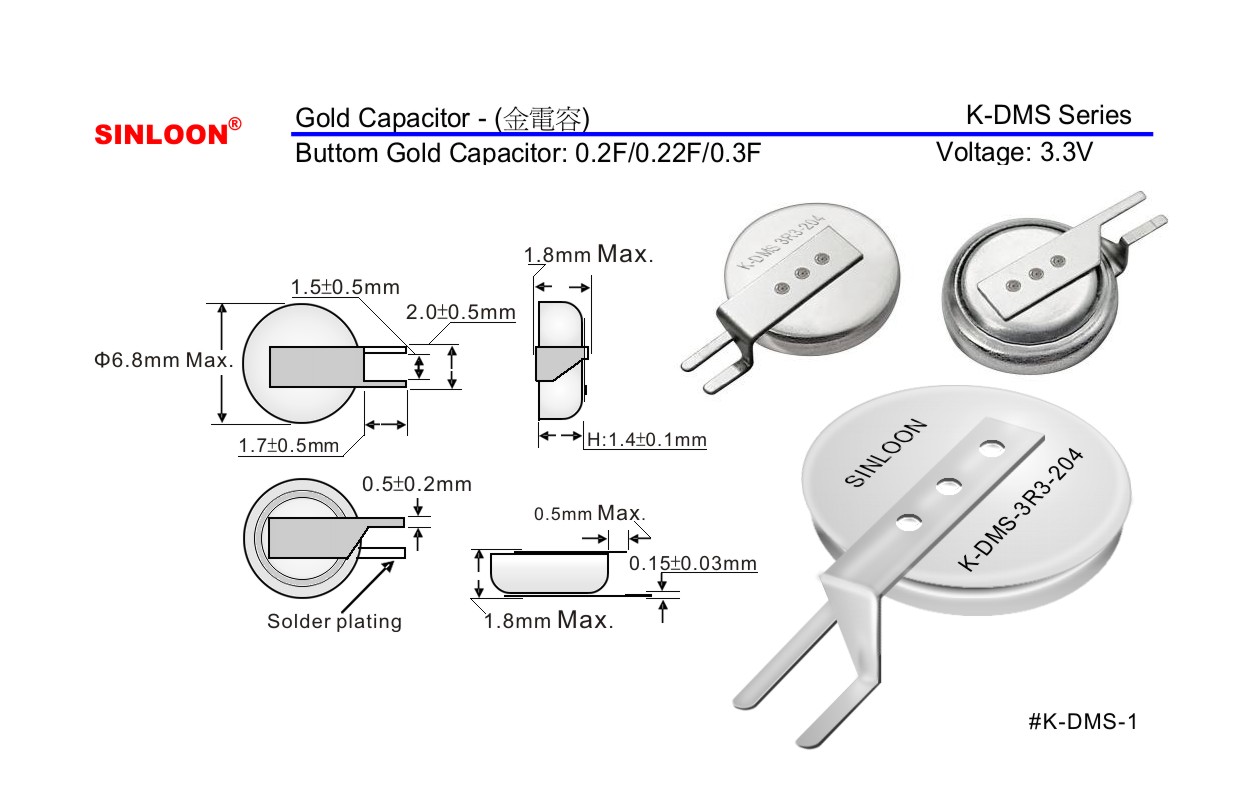

 Gold Capacitor - (金電容) |
K-DMS Series | |||||||
| Button Gold Capacitor: 0.2F/0.22F/0.3F 3.3V | Voltage: 3.3V | ||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
  Gold Capacitor K-DMS (3.3V) Series |
|||||||||
| Features: (特性) | Applications (產品應用) | ||||||||
| Button case small-size but large capacity. | Memory back-up for cellular photo, | ||||||||
| (鈕扣型小型化大容量) | Solar watches, solar calculators, MP3, PMP. | ||||||||
| Unlike battery, almost unlimited charge / discharge cycle. | PDA, Digital Photo frame, Digital camera, | ||||||||
| (別以電池, 俱充電/放電 無限循環.) | Digital health care devices. | ||||||||
| Standard products (標準規格型號) | SINLOON | ||||||||
| Part No. | Capacitance | Operating | ESR | ||||||
| (F) | Voltage | @AC 1KHz | DC | ||||||
| K-DMS 3R3 204 | 0.20 | 3.3VDC | ≦0.018 Ω | ≦200 Ω | |||||
| K-DMS 3R3 224 | 0.22 | 3.3VDC | ≦0.015Ω | ≦200 Ω | |||||
| K-DMS 3R3 304 | 0.30 | 3.3VDC | ≦0.015Ω | ≦200 Ω | |||||
| Note: It is not allowed to go through reflow (IR, Atmosphere heating methods etc.) process. |  |
||||||||
| 注意: 不允許使用回流焊鍚. | |||||||||
Gold Capacitor
