功率型繞線電阻

HPD - Resistor Resistor -TH - 電阻
E-mail 列印 PDF

按圖放大 Resistor 大功率電力型電阻器

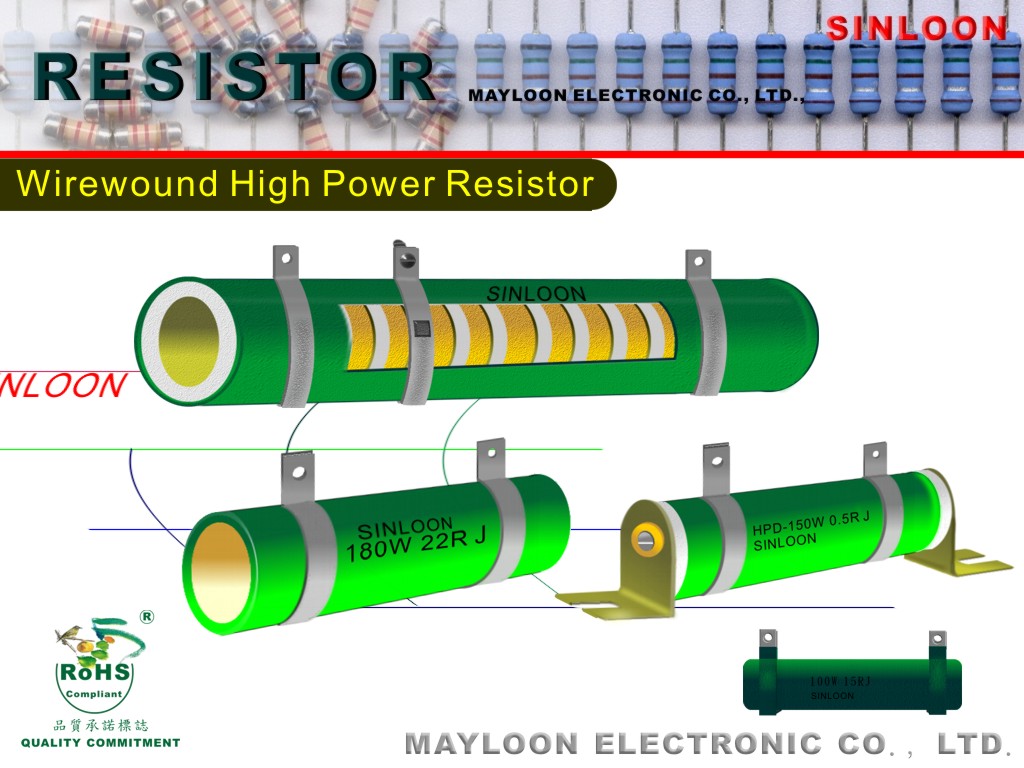

PDF File Data Spec Fixed Wirewound Hihg Power Resistor - HPD Series

Resistor FEATURE

  • Fire proof
  • High Power 10W to 3000W.
  • Wire wound resistor with the features of superior heat and pulse  resistance as well as high reliability. It is suitable for high-power circuits application.
HPD Type  ( ADJUSTABLE TYPE) HPQ Type  ( ADJUSTABLE TYPE) HPZ Type  ( ADJUSTABLE TYPE)
Power Rated Resistance Range Power Rated Resistance Range Power Rated Resistance Range
HPD-10W 1Ω ~ 10K Ω HPQ-75W 1Ω ~ 8K Ω HPZ-80W 0.1Ω ~ 80K Ω
HPD-20W 1Ω ~ 20K Ω HPQ-90W 1Ω ~ 9K Ω HPZ-100W 0.1Ω ~ 100K Ω
HPD-30W 1Ω ~ 30K Ω HPQ-120W 0.2Ω ~ 12K Ω HPZ-120W 0.1Ω ~ 120K Ω
HPD-40W 1Ω ~ 40K Ω HPQ-150W 0.2Ω ~ 15K Ω HPZ-150W 0.1Ω ~ 150K Ω
HPD-50W 0.1Ω ~ 50K Ω HPQ-180W 0.2Ω ~ 18K Ω HPZ-200W 0.1Ω ~ 200K Ω
HPD-60W 0.1Ω ~ 60K Ω HPQ-225W 0.2Ω ~ 20K Ω HPZ-250W 0.1Ω ~ 250K Ω
HPD-80W 0.1Ω ~ 80K Ω HPQ-240W 0.5Ω ~ 25K Ω HPZ-300W 0.1Ω ~ 300K Ω
HPD-100W 0.1Ω ~ 100K Ω HPQ-300W 0.5Ω ~ 30K Ω
HPD-120W 0.1Ω ~ 120K Ω HPQ-375W 0.5Ω ~ 40K Ω
HPD-150W 0.1Ω ~ 150K Ω HPQ-450W 0.5Ω ~ 45K Ω
HPD-160W 0.1Ω ~ 160K Ω HPQ-600W 0.5Ω ~ 60K Ω
HPD-200W 0.1Ω ~ 200K Ω HPQ-750W 0.5Ω ~ 75K Ω
HPD-225W 0.1Ω ~ 200K Ω HPQ-900W 1Ω ~ 90K Ω
HPD-250W 0.5Ω ~ 250K Ω HPQ-1KW 1Ω ~ 100K Ω
HPD-300W 0.5Ω ~ 300K Ω HPQ-1.2KW 1Ω ~ 120K Ω
HPD-400W 0.5Ω ~ 400K Ω HPQ-1.5KW 1Ω ~ 150K Ω
HPD-500W 0.5Ω ~ 500K Ω HPQ-2KW 1Ω ~ 200K Ω
HPD-600W 1Ω ~ 600K Ω
HPD-700W 1Ω ~ 700K Ω
HPD-800W 1Ω ~ 800K Ω
HPD-1KW 1Ω ~ 1M Ω
HPD-3KW 1Ω ~ 1M3 Ω Return to Resistor First Page
