Melf Metal Glaze Resistor - MMG  (玻璃釉晶圓電阻)

Melf Metal Glaze Resistor - MMG

FEATURE   電阻兩端鐵帽電極的距離1mm,可以承受1KV的脈衝高壓.

◆ SMD enabled structure

◆ Excellent Solderability Termination

◆ Lead (Pb)-free and RoHS compliant .

◆ Pure Sn termination on Ni barrier layer.

◆ Smail in dimension and broad range in high resistor

◆ Excellent in absorption of electric shock (Pulse, surge voltage)

◆ Compatible with lead (Pb)-free and lead containing soldering processes.

◆ Metal glaze resistor elements provide high stable performance against environmental conditions and overload.

(MMG 金屬釉膜超小型尺寸有較高的額定功率及比一般電阻有更高的工作電壓,高脈衝負載能力，抗高溫及抗濕度。)

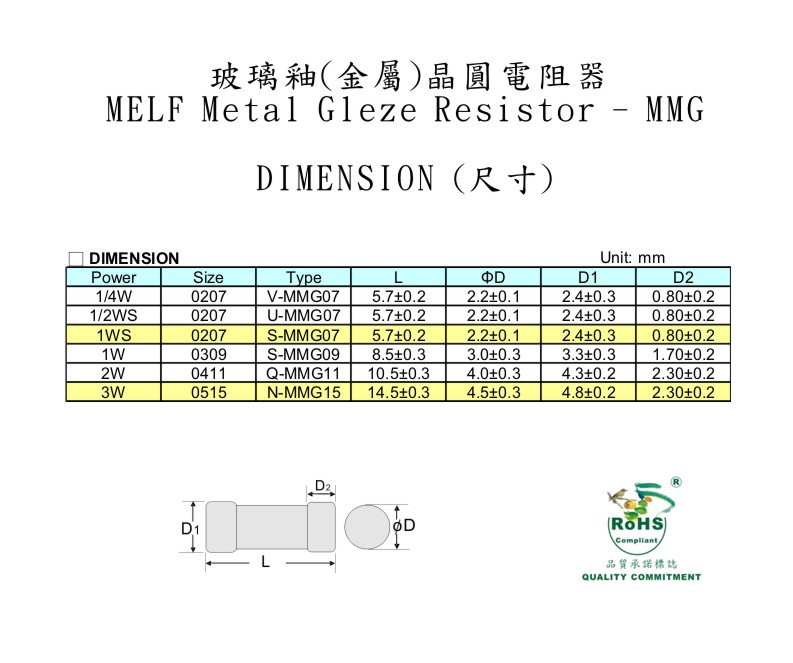

DIMENSION					Unit:	mm	SINLOON®
Power	Size	Type	L	ΦD	D1	D2
1/4W	0207	V-MMG07	5.7±0.2	2.2±0.1	2.4±0.3	0.80±0.2
1/2WS	0207	U-MMG07	5.7±0.2	2.2±0.1	2.4±0.3	0.80±0.2
1WS	0207	S-MMG07	5.7±0.2	2.2±0.1	2.4±0.3	0.80±0.2
1W	0309	S-MMG09	8.5±0.3	3.0±0.3	3.3±0.3	1.70±0.2
2W	0411	Q-MMG11	10.5±0.3	4.0±0.3	4.3±0.2	2.30±0.2
3W	0515	N-MMG15	14.5±0.3	4.5±0.3	4.8±0.2	2.30±0.2

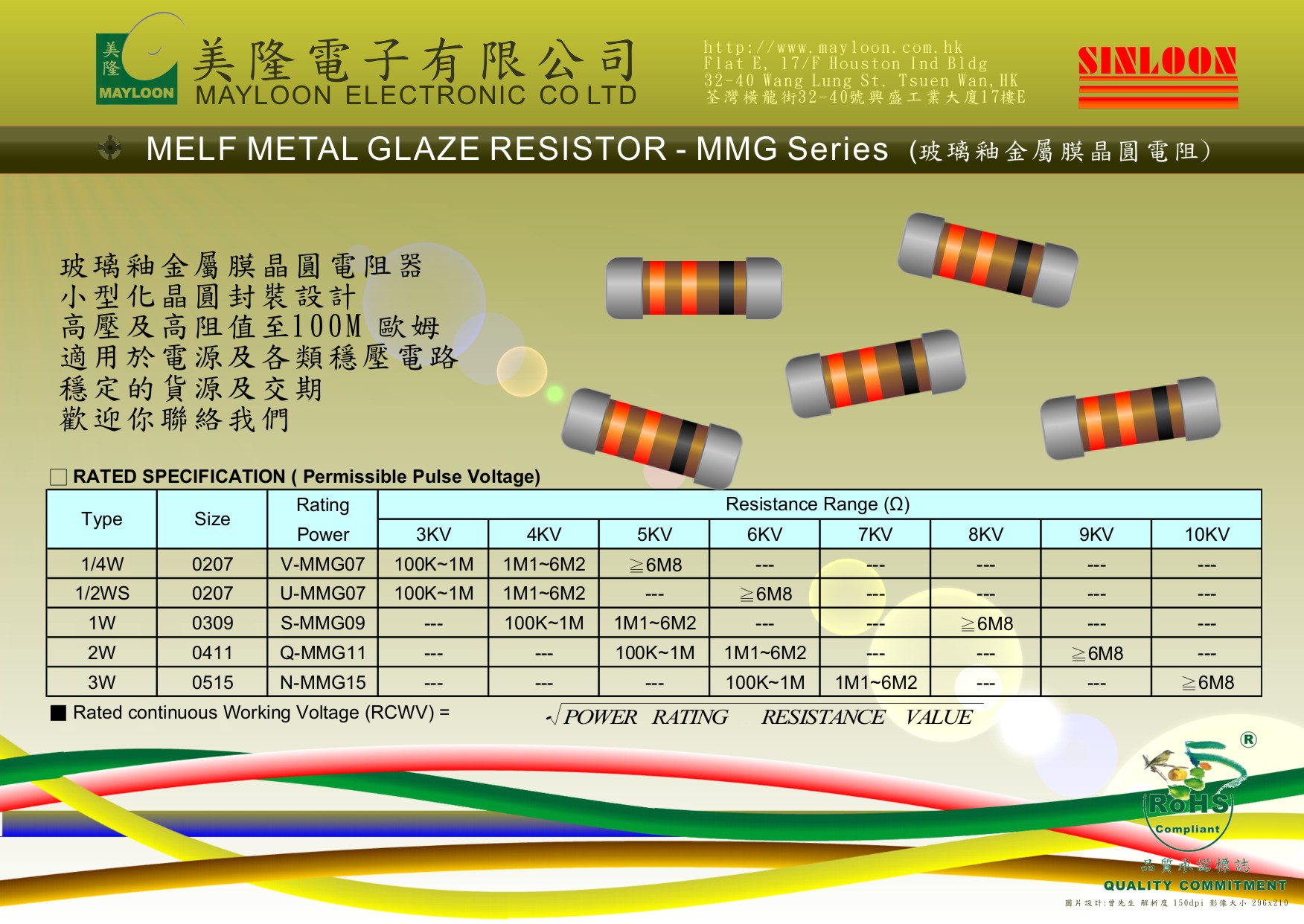

RATED SPECIFICATION ( Permissible Pulse Voltage)
Type	Size	Rating	Resistance Range (Ω)
		Power	3KV	4KV	5KV	6KV	7KV	8KV	9KV	10KV
V-MMG07	0207	1/4W	100K~1M	1M1~6M2	≧6M8	---	---	---	---	---
U-MMG07	0207	1/2WS	100K~1M	1M1~6M2	---	≧6M8	---	---	---	---
S-MMG07	0207	1WS	100K~1M	1M1~6M2	---	---	≧6M8	---	---	---
S-MMG09	0309	1W	---	100K~1M	1M1~6M2	---	---	≧6M8	---	---
Q-MMG11	0411	2W	---	---	100K~1M	1M1~6M2	---	---	≧6M8	---
N-MMG15	0515	3W	---	---	---	100K~1M	1M1~6M2	---	---	≧6M8
Applications (應用):
Military ((軍用) ; Automotive (滊車); Telecommunication (通訊設備)
Medical equipment. (醫療議器); Avionics (航空儀器
(MMG 金屬釉膜超小型尺寸有較高的額定功率及比一般電阻有更高的工作電壓,高脈衝負載能力，抗高溫及抗濕度。)

高壓電阻
