Melf Metal Oxide Resistor - MMO (金屬氧化膜晶圓電阻)
Melf Metal Oxide Resistor - MMO
FEATURE
◆ SMD enabled structure
◆ Excellent Solderability Termination
◆ Lead (Pb)-free and RoHS compliant .
◆ Pure Sn termination on Ni barrier layer.
◆ Compatible with lead (Pb)-free and lead containing soldering processes.
◆ Metal glaze resistor elements provide hight stable performance against
environmental conditions and overload.
□ INTRODUCTION
MMO For Metal Oxide Resistor to show long-term stability under high temperature, the unit area of
resistance film must withstand larger loads, The small-sized high-performance metal oxide film
Resistor are made of high-quality ceramic core with size greatly reduced in comparison with RS,
while having the same performance of large-sized Resistor.
(MMO 對於電阻長期穩定的高溫下,電阻薄膜的面積必須承受更大的負荷,小型高性能金屬氧化物
薄膜電阻器是由高品質陶瓷棒大大降低了與RS的比較,而具它有相同大型電阻相同的性能。)

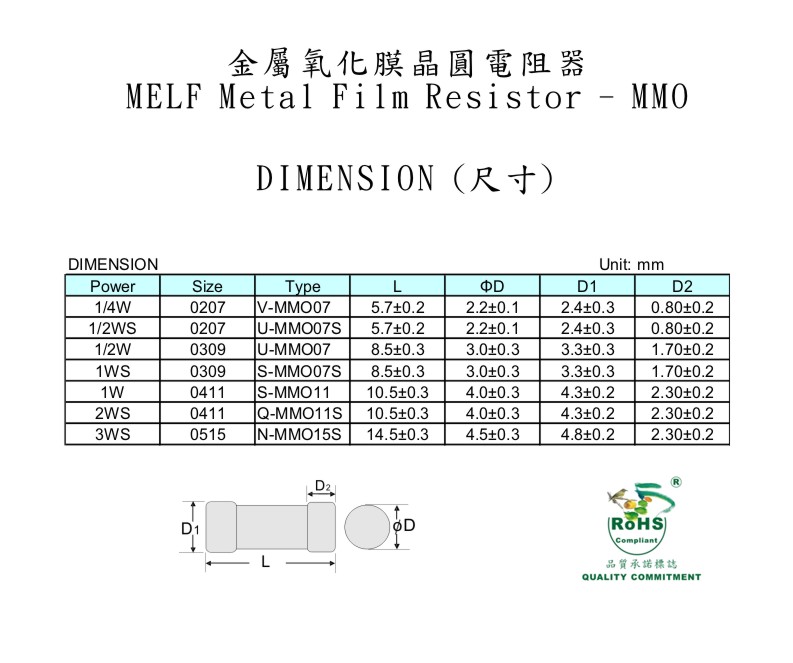

| DIMENSION | Unit: | mm | ||||
| Power | Size | Type | L | ΦD | D1 | D2 |
| 1/4W | 0207 | V-MMO07 | 5.7±0.2 | 2.2±0.1 | 2.4±0.3 | 0.80±0.2 |
| 1/2WS | 0207 | U-MMO07S | 5.7±0.2 | 2.2±0.1 | 2.4±0.3 | 0.80±0.2 |
| 1/2W | 0309 | U-MMO07 | 8.5±0.3 | 3.0±0.3 | 3.3±0.3 | 1.70±0.2 |
| 1WS | 0309 | S-MMO07S | 8.5±0.3 | 3.0±0.3 | 3.3±0.3 | 1.70±0.2 |
| 1W | 0411 | S-MMO11 | 10.5±0.3 | 4.0±0.3 | 4.3±0.2 | 2.30±0.2 |
| 2WS | 0411 | Q-MMO11S | 10.5±0.3 | 4.0±0.3 | 4.3±0.2 | 2.30±0.2 |
| 3WS | 0515 | N-MMO15S | 14.5±0.3 | 4.5±0.3 | 4.8±0.2 | 2.30±0.2 |
 |
||||||
| RATED SPECIFICATION | ||||||
| Type | Size | Power | Maxinmun Voltage | Resistance (E24)Range (Ω) | ||
| 型號 | 尺寸 | 功率 | Working | Overload | ±2% | ±5% |
| 1/4W | 0207 | V-MMO07 | 250V | 500V | 0.5R~56K | 0.5R~56K |
| 1/2WS | 0207 | U-MMO07S | 300V | 500V | 0.5R~56K | 0.5R~56K |
| 1/2W | 0309 | U-MMO07 | 350V | 600V | 0.5R~82K | 0.5R~82K |
| 1WS | 0309 | S-MMO07S | 350V | 600V | 0.5R~82K | 0.5R~82K |
| 1W | 0411 | S-MMO11 | 400V | 700V | 0.5R~100K | 0.5R~100K |
| 2WS | 0411 | Q-MMO11S | 400V | 700V | 0.5R~100K | 0.5R~100K |
| 3WS | 0515 | N-MMO15S | 400V | 800V | 0.5R~120K | 0.5R~120K |
 |
||||||
