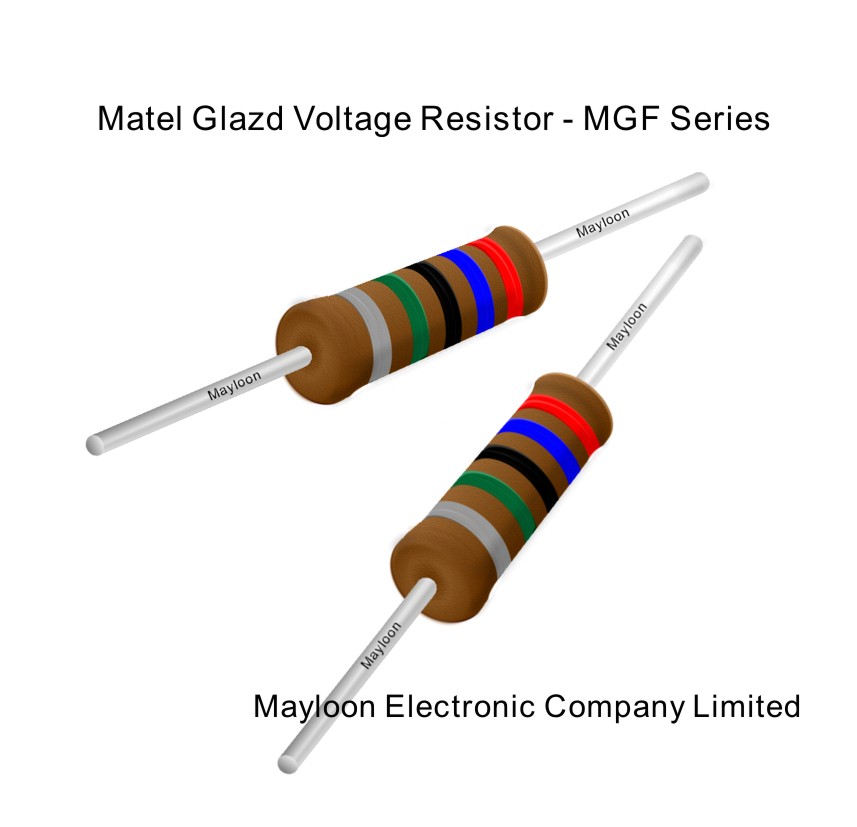

玻璃釉(金屬)高壓高阻值電阻
Metal Glazed Fixed Resistor - MG Series
FEATURE
電阻兩端鐵帽電極的距離1mm,可以承受1KV的脈衝高壓.
SCOPE:
This specification is available for Metal Glaze Resistor manuactured by Mayloon.
The resistor is manufactured highly quality-controlled process and guaranteed hgh reliability.
| □ Feature | □ Applications | ||||||||
| ◆ Higher working voltage (高工作電壓) | ◆ Ultra-high vacuum applications. (超高真空應用) | ||||||||
| ◆ High pulse loading capability (高脈衝負載) | ◆ Casteth forth surge protection and a voltage regulator. (浪湧保護及分壓器) | ||||||||
| ◆ Resistance to high temperature and humidity (抵抗高溫和耐濕度) | ◆ Power protection and discharge path resistance.( 電源保護和分流電阻) | ||||||||
| ◆ Highly stable performance and highly reliable (電性穩定,特性可靠) | ◆ Current pulse limit, and pulse load equipment.( 電流脈衝限制器和脈衝負載設備) | ||||||||
| ◆ Micro-current circuit measurements, medical instrument.( 微電流電路測量，醫療儀器) | |||||||||
| □ Rated Power | |||||||||
| Power | Type | Max. Vol. | Max. Vol. | Dielectric With | Resistance3 | Tolerance | IEC | T.C.R. | |
| Rating | Working | Overload | Standing Voltage | Publications | ℃ | ||||
| Silicone1 | Epoxy2 | ||||||||
| 1/8W | W-MG0204 | DC500V | 1KV | 300V | 400V | 50K ~ 10G | K = ±10% | E12 | D=±50ppm |
| 1/4W | V-MG0207 | DC1.6KV | DC2.0KV | 400V | 500V | J = ±5% | E24 | E=±100ppm | |
| AC1.15KV | AC1.5KV | 400V | 500V | F = ±1% | E24 | K=±150ppm | |||
| 1/2WS | U-MG0207 | DC1.7KV | 2.5KV | 400V | 500V | D = ±0.5% | E24 | F=±200ppm | |
| 1/2WS | U-MG0309 | DC1.8KV | 2.5KV | 400V | 500V | G=±300ppm | |||
| 1/2W | U-MG0410 | DC3.5KV | 4.0KV | 500V | 700V | I=±500ppm | |||
| 1WS | S-MG0412 | DC4.0KV | 4.5KV | 500V | 700V | ||||
| 1W | S-MG0414 | DC4.5KV | 5.0KV | 500V | 1000V | ||||
| 2WS | Q-MG0416 | DC5.0KV | 5.5KV | 500V | 1000V | ||||
| 2W | Q-MG0516 | DC7.0KV | 7.5KV | 700V | 1200V | ||||
| 3WS | N-MG0518 | DC7.0KV | 7.5KV | 700V | 1200V | ||||
| Rating Ambient Temperature: | 70℃ | ||||||||
| Operating Temperature Range: | -55℃ ~ +175℃ Rating Ambient Temperature ±70℃. | ||||||||
| ※Silicone1 | Resistor body coating silicone resin brown (Flame-proof) | ||||||||
| ※Epoxy2 | Resistor body coating epoxy resin light blue. | ||||||||
| ※Resistance3: | <10M Tolerance ±0.5% IEC: E24 | >1G Tolerance ±10% IEC: E12. TCR ±500ppm | |||||||
