高精密金屬膜晶圓電阻

Precision MELF Metal Film Resistor - PMF Series

FEATURE

◆ Low Noise

◆ Low T.C.R to 15ppm

◆ Precision Tolerance Tight to ±0.1%, ±0.25%, ±0.5%. ±1%.

◆ Wide Precision Range: 10Ω ~ 1MΩ

◆ Lead (Pb)-free and RoHS Compliant

◆ Compatible with lead (Pb)-free and lead containing soldering processes

Applications (應用):

Military ((軍用) ; Automotive (滊車); Telecommunication (通訊設備)

Medical equipment. (醫療議器); Avionics (航空儀器)

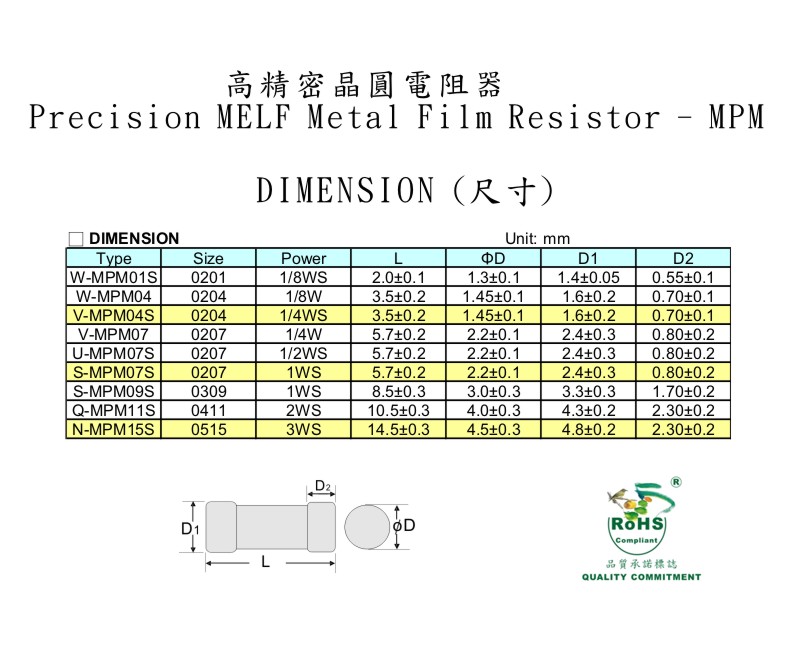

DIMENSION				Unit:	mm		SINLOON®
Type	Size	Power	L	ΦD	D1	D2
W-MPM01S	0201	1/8WS	2.0±0.1	1.3±0.1	1.4±0.05	0.55±0.1
W-MPM04	0204	1/8W	3.5±0.2	1.45±0.1	1.6±0.2	0.70±0.1
V-MPM04S	0204	1/4WS	3.5±0.2	1.45±0.1	1.6±0.2	0.70±0.1
V-MPM07	0207	1/4W	5.7±0.2	2.2±0.1	2.4±0.3	0.80±0.2
U-MPM07S	0207	1/2WS	5.7±0.2	2.2±0.1	2.4±0.3	0.80±0.2
S-MPM07S	0207	1WS	5.7±0.2	2.2±0.1	2.4±0.3	0.80±0.2
S-MPM09S	0309	1WS	8.5±0.3	3.0±0.3	3.3±0.3	1.70±0.2
Q-MPM11S	0411	2WS	10.5±0.3	4.0±0.3	4.3±0.2	2.30±0.2
N-MPM15S	0515	3WS	14.5±0.3	4.5±0.3	4.8±0.2	2.30±0.2
RATED SPECIFICATION
Type	Size	Rating	Maxinmun Voltage		Resistance Range (Ω)			T.C.R.
		Power	Working	Overload	±0.1%	±0.25%	±0.5%	(℃)
W-MPM01S	0201	1/8WS	150V	300V	50R-56K	50R-56K	50R-100K	±15ppm
W-MPM04	0204	1/8W	150V	300V	100R-56K	100R-56K	100R-100K	±25ppm
V-MPM04S	0204	1/4WS	200V	400V	100R-56K	100R-56K	100R-100K	±50ppm
V-MPM07	0207	1/4W	200V	400V	100R-56K	100R-56K	10R-560K	±100ppm
U-MPM07S	0207	1/2WS	300V	600V	100R-56K	100R-56K	10R-560K
S-MPM07S	0207	1WS	400V	600V	100R-56K	100R-56K	10R-560K
S-MPM09S	0309	1WS	500V	1KV	---	---	10R-100K	±50ppm
Q-MPM11S	0411	2WS	500V	1KV	---	---	10R-100K	±100ppm
N-MPM15S	0515	3WS	500V	1KV	---	---	10R-100K
