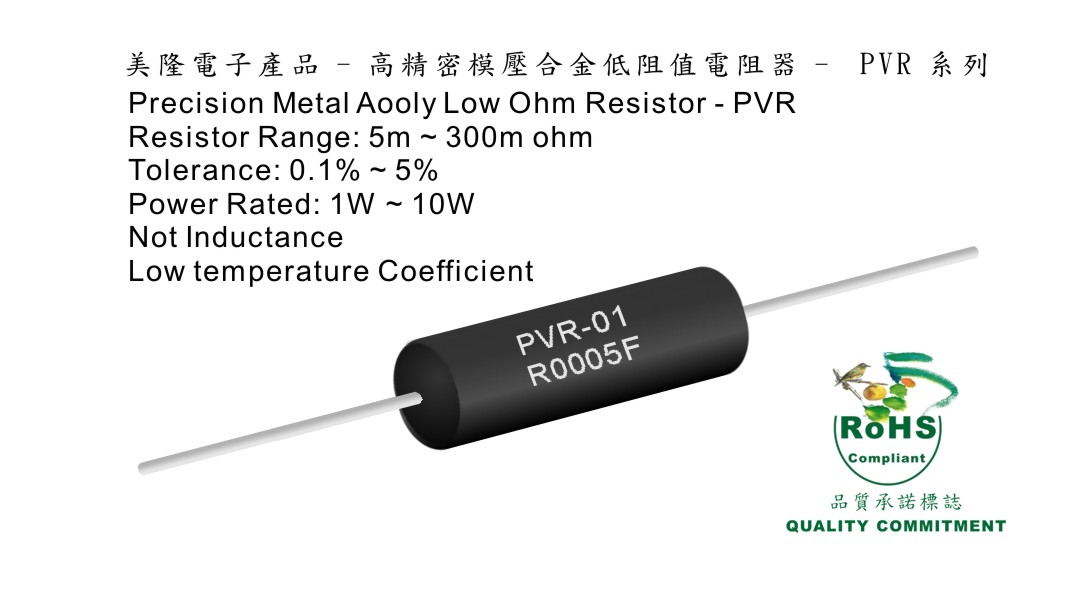

PRECISION METAL ALLOY LOW OHM RESISTOR - PVR (高密模壓合金電阻)
PRECISION METAL ALLOY LOW OHM RESISTOR - PVR SERIES
| 高精密低阻值合金電阻 | Type: | PVR Series | ||||||
| Resistance 5m - 300m Ω | Precision Alloy Low ohm Resistor | |||||||
| Feature | ||||||||
| Extremely low resistance value. | 超低電阻值 | |||||||
| Ultra low ohm , Not inductance. | 毫歐低阻值, 無感抗值. | |||||||
| Low temperature coefficient. | 低溫度系數(低溫飄). | |||||||
| Design for types of current sensing application. | 應用於電流感測電路設計. | |||||||
| High power small size. | 本體小功率大. | |||||||
| Series PVR match with the European standard and the requirements of SONY-RoHS SS00259 standard. | ||||||||
| PVR 系列符合歐盟RoHS準及SONY-SS000295 條件要求. | ||||||||
| Specification Data | ||||||||
| Power | Type P/N. | Maximum | Insulation | Resistance | Tolerance | Operating | ||
| Working vol. | Overload vol. | Voltage | Range (Ω) | Temperature Range | ||||
| 1W | PVR-01 | ＊(PxR)1/2 | 1000V | 500V | 5m~50m | ±0.1% | -65℃ ~ +175℃ | |
| 3W | PVR-03 | ＊(PxR)1/2 | 1000V | 500V | m5~100m | ±0.5% | -65℃ ~ +175℃ | |
| 5W | PVR-05 | ＊(PxR)1/2 | 1000V | 1000V | m5~200m | ±1%,±2% | -65℃ ~ +275℃ | |
| 10W | PVR-10 | ＊(PxR)1/2 | 1000V | 1000V | m5~300m | ±5% | -65℃ ~ +275℃ | |
| Rating Ambient temperature: | ±25℃ | |||||||
| ＊ : (Rated Power X Current Resistance)1/2 |  |
|||||||
高精密模壓合金電阻
