Resistor 超小型金屬膜電阻

PDF File Data Spec Ultra Miniature Metal Film Resistor - UMR Series

INTRODUCTION
The UMR Series flame-proof type miniature Metal Film Resistors are manufactured by vacuum depose it metal film on
high thermal conductivity and specific gravity Rosenthal ceramic or same grade Japans rods. The both ends of
ceramic are coated with precision mixed metals which help to prevent against noise, and to provide low TCR
and low Tol precision resistors the can meet MIL and JIS requirement.
Utilizing a 95~98% of AI ceramic cores and combined a special cutting technology inside, this resulting superior
resistors give excellent heat dissipation, stable performance and significantly up-grade the power rating.
This specially designed resistors are widely used by the industries of communication devices, meters,
high-class, audio equipments and precision military defending facilities as well.

EXTERNAL DIMENSIONS					SINLOON®
STYLE	DIMENSION (mm)
STYLE	L	ΦD	H	Φd
UMR-01	3.3±0.4	1.8±0.3	28±2	0.5±0.05
UMR-02	6.3±0.5	2.3±0.3	28±2	0.6±0.05
UMR-03	6.3±0.5	2.3±0.3	28±2	0.6±0.05
UMR-10	6.3±0.5	2.3±0.3	28±2	0.6±0.05
UMR-20	9.0±0.5	3.2±0.5	26±2	0.6±0.05
UMR-30	15.5±1.0	5.0±0.5	32±2	0.6±0.05
The type designation shall be in the following form and as specified.

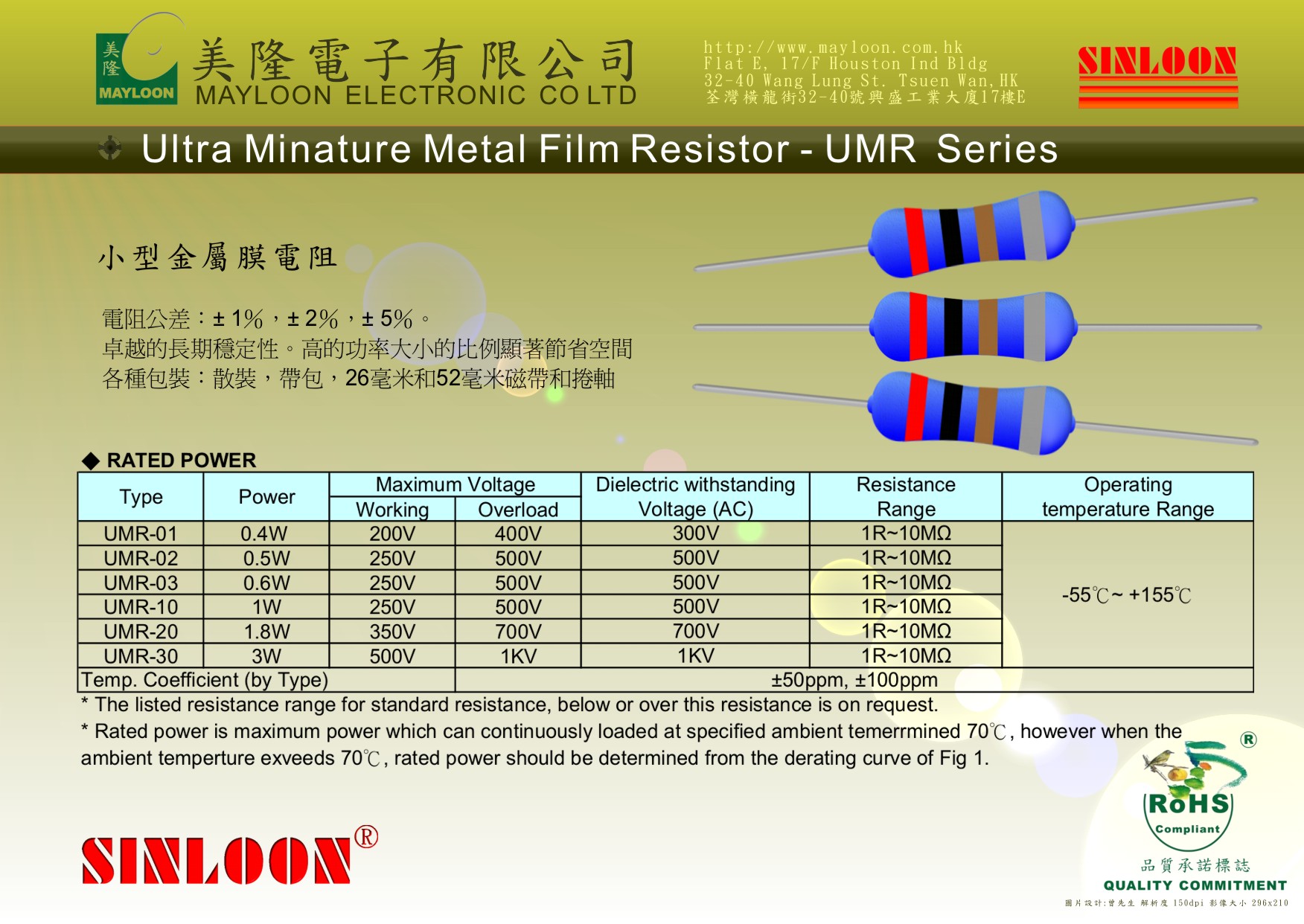

RATED POWER
Type	Power	Maximum Voltage		Dielectric withstanding	Resistance
Type	Power	Working	Overload	Voltage (AC)	Range
UMR-01	0.4W	200V	400V	300V	1R~10MΩ
UMR-02	0.5W	250V	500V	500V	1R~10MΩ
UMR-03	0.6W	250V	500V	500V	1R~10MΩ
UMR-10	1W	250V	500V	500V	1R~10MΩ
UMR-20	1.8W	350V	700V	700V	1R~10MΩ
UMR-30	3W	500V	1KV	1KV	1R~10MΩ
Temp. Coefficient (by Type)			±50ppm, ±100ppm
FEATURES
Resistance Tolerance: ±1%, ±2%, ±5%.
Excellent long-term stability.
High power-to-size ratio for significant space saving.
Variety of packing: bulk, strip pack, 26mm and 52mm tape and reel, cut and foramen.
