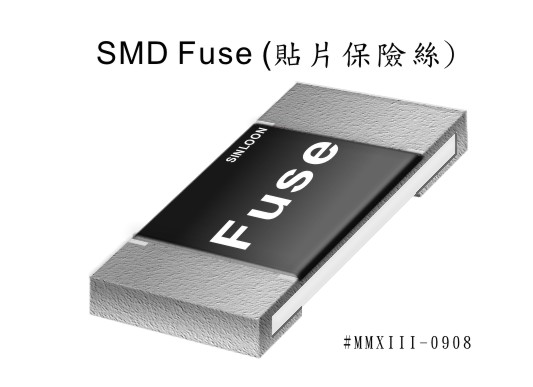

表面貼裝片式保險絲 | Case: 0402 | TFF04 Series | |||||||||
Current Range: 0.315A~4.0A | Surface Mount Thin Film Chip Fuse | ||||||||||
SINLOON® | |||||||||||
Chip Fuse TFF04 (315mA~4.0mA) | |||||||||||
Features (特性) | Application (應用) | ||||||||||
Surface mount (0402) case designed (小型化表面封裝設計) | Portable electronics equipment (便携式電子設備) | ||||||||||
Designed for over current protection (超電流保護) | Personal computer, Notebook, server (個人電腦,筆記本電腦及服務器) | ||||||||||
Ampere rating from 315mA~400mA. (電流由0.315A~4.0A) | Multi-function printer, scanner, projector.(功能打印機,掃描機,投影機) | ||||||||||
Low internal resistance (低內阻) | LCD Display, TV and Monitor (LEC 顯示器,電視及顯示器) | ||||||||||
Extremely small current rating (非常小的電流額定值) | Set Top Box and Data modem (機頂盒和數據解碼器) | ||||||||||
Lead-Free, RoHS compliant for global application and halogen free (無鉛,符合RoHS標準及無卥.) | |||||||||||
Electrical Specification | |||||||||||
Part No. | Rated | Resistance | Rated | Breaking | Part No. | Rated | Resistance | Rated | Breaking | ||
Designation | Current (A) | (Ω)1 | Voltage | Capacity | Designation | Current (A) | (Ω)1 | Voltage | Capacity | ||
TFF04V3A315T | 0.32 | 0.690 | DC-32V | DC32V/35A | TFF04V31A60T | 1.60 | 0.044 | DC-32V | DC32V/35A | ||
TFF04V3A50T | 0.50 | 0.340 | DC-32V | DC32V/35A | TFF04V32A0T | 2.00 | 0.033 | DC-32V | DC32V/35A | ||
TFF04V3A75T | 0.75 | 0.140 | DC-32V | DC32V/35A | TFF04V32A5T | 2.50 | 0.025 | DC-32V | DC32V/35A | ||
TFF04V3A80T | 0.80 | 0.100 | DC-32V | DC32V/35A | TFF04V33A0T | 3.00 | 0.019 | DC-32V | DC32V/35A | ||
TFF04V31A0T | 1.00 | 0.095 | DC-32V | DC32V/35A | TFF04V33A15T | 3.15 | 0.018 | DC-32V | DC32V/35A | ||
TFF04V31A25T | 1.25 | 0.057 | DC-32V | DC32V/35A | TFF04V34A0T | 4.00 | 0.012 | DC-32V | DC32V/35A | ||
TFF04V31A50T | 1.50 | 0.045 | DC-32V | DC32V/35A | |||||||
Others data not in the specification of data, please contact us. (如果你要求的規格不在本規格書裡請與我們聯絡) | |||||||||||
