High Power Shunt Resistor

分流電阻(分路電阻) Type: HSR Series

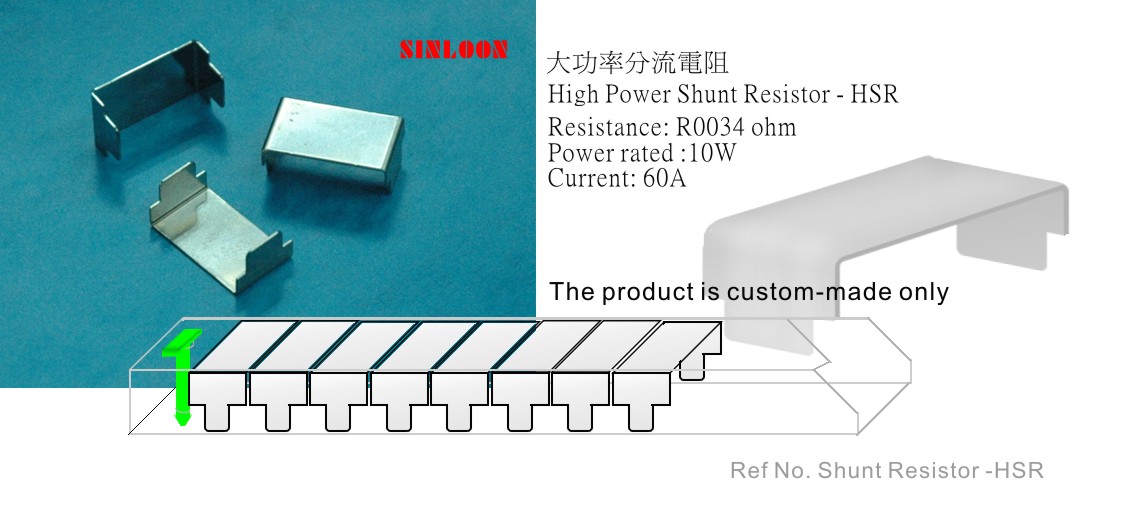

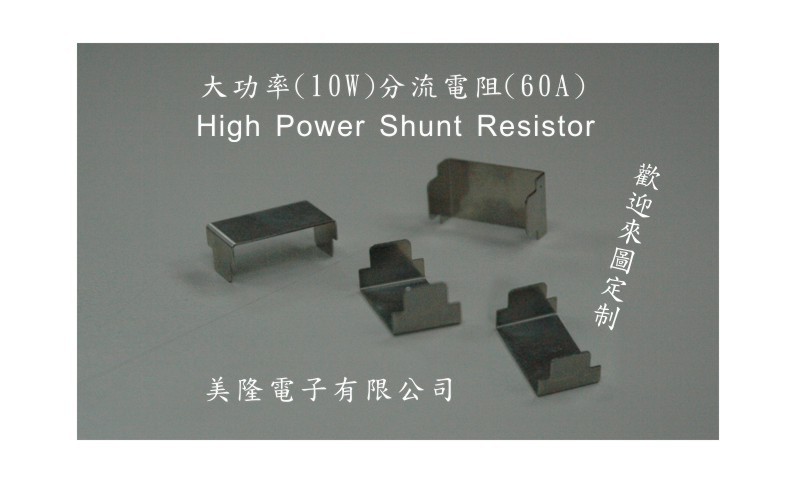

High Power & High Current: 10W / 60A High Power Shunt Resistor
Resistor
PDF File  Data Spec High Power Shunt Resistor  - HSR
Feature (特性) SINLOON®
Low ohm (3.4mΩ) High Current (60A). 低阻值(3.4mΩ), 大電流 (60A).
The HSR Series  is suitable for high power current detection. HSR 系列適用於高功率的電流檢測及汽車工業.
Pitches and heights adjustable according to mounting conditions. 可依使用要求兩端間距和高度可調制
Ni alloy resistor, cover with heat resistive epoxy resin partly 鎳合金電阻器部分覆蓋環氧樹脂.
Products with lead-free terminations meet EU RoHS requirement. 產品符歐盟RoHS要求環保條件.
Special dimensions request by customer are available. (特殊尺寸規格之設計圖紙由端戶提供)
Specification:
Parameter Specification
Resistance 3.4mΩ (4 points measurement: Current and voltage measure on Fig-1 )
Resistance Tolerance ±5%
Temperature coefficient of resistance ±50ppm/
Rated Load 10W
Maximum over current 60A (10 minutes maximum)
Operating temperature -55 ~ 155
Rated temperature +70
maximum surface temperature +275 (under 150 on terminal)
Others data not in the specification of data, please contact us.
如果你要求的規格不在本規格書裡請與我們聯絡.
