Carbon Film Resistor

Resistor 碳膜電阻

INTRODUCTION
Featuring consistency and stably-controlled, these carbon film resistors with reasonable prices are widely
& largely used in the electronic, electrical and information industries. This resistor is a ceramic bar tightly
coated with a carbon film which is composed of carbon separated from organic compound through the
treatment of high-temperature vacuum. After the carbon-coated bar is connected with proper joint and
engraved with grooves, its surface is finished with epoxy resin so that the bar is enclosed with a protective film.

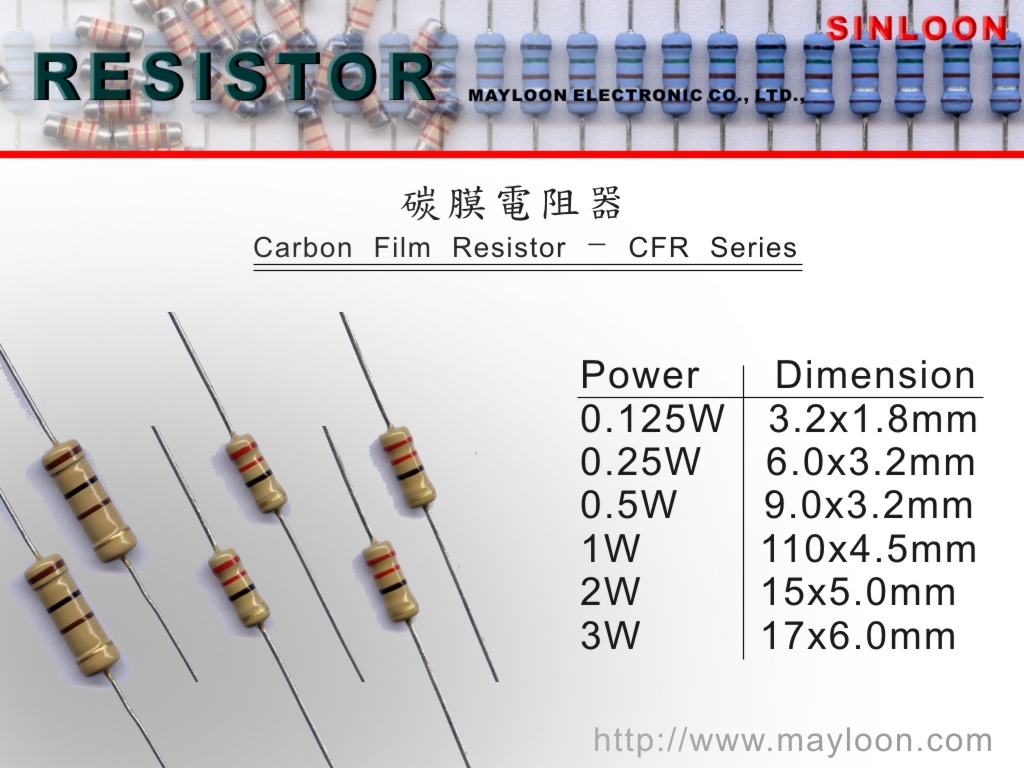

EXTERNAL DIMENSIONS						SINLOON®
STYLE	DIMENSION (mm)
	L	ΦD	H	Φd
CFR16	3.2±0.2	1.8±0.3	28±2	0.43±0.02
CFR18	3.2±0.2	1.8±0.3	28±2	0.43±0.02
CFR25	6.0±0.2	2.3±0.3	28±2	0.5±0.02
CFR50	9±0.5	3.2±0.3	26±2	0.6±0.02
CFR100	11.0±0.5	4.5±0.5	35±2	0.7±0.02
CFR200	15.0±0.5	5.0±0.5	32±2	0.8±0.02
CFR300	17.0±0.5	6.0±0.5	32±2	0.8±0.02
The type designation shall be in the following form and as specified.

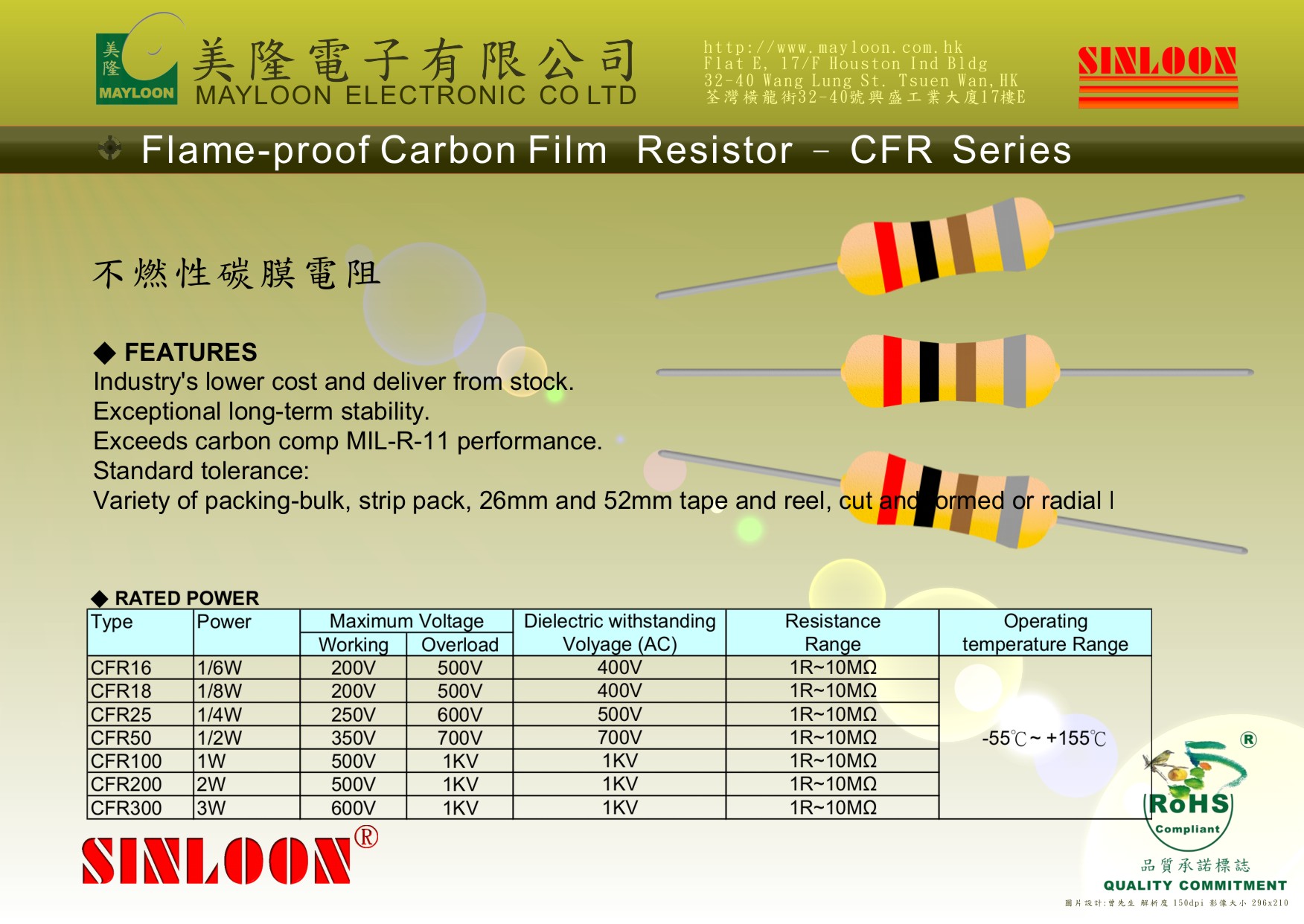

RATED POWER
Type	Power	Maximum Voltage		Dielectric withstanding	Resistance	Operating
		Working	Overload	Voltage (AC)	Range	temperature Range
CFR16	1/6W	200V	500V	400V	1R~10MΩ	-55℃~ +155℃
CFR18	1/8W	200V	500V	400V	1R~10MΩ
CFR25	1/4W	250V	600V	500V	1R~10MΩ
CFR50	1/2W	350V	700V	700V	1R~10MΩ
CFR100	1W	500V	1KV	1KV	1R~10MΩ
CFR200	2W	500V	1KV	1KV	1R~10MΩ
CFR300	3W	600V	1KV	1KV	1R~10MΩ
FEATURES
Industry's lower cost and deliver from stock.
Exceptional long-term stability.
Exceeds carbon comp MIL-R-11 performance.
Standard tolerance:
Variety of packing-bulk, strip pack, 26mm and 52mm tape and reel, cut and formed or radial Pane.
