LED Dimmer

E-mail PDF
SINLOON® LED 調光器 (手動) LED Dimmer
LED Manual Dimmer 0 - 10V Dimmer
PDF File LED Dimmer 0 - 10V
Feature:

¾With an integral rotary potentiometer. - - 按圖放大
¾ With a combined switch or push button.
¾ Permit the continuous dimming or electronic ballasts with
a low-voltage interface of 1-10V as source. - - - -
¾ No additional voltage supply.
¾ Suitable for direct -switching of the lamps up to the
stated nominal current.
¾ Used to actuate contactors for larger switching outputs.
Data Specification:
Model No. Switch type Output connection Load Output (Max.) Load Switch output Max. cables
DIM-D01 Combined switch DC 1 - 10V 20mA 5A 100M
DIM-D02 Push button DC 1 - 10V 20mA 5A 100M

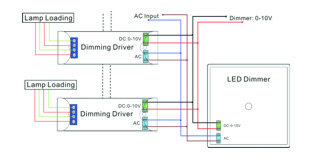

LED Dimmer wiring diagram :
產品說明:
不需要添加任何外接電源.
可以用於直接控制電燈開關.
產品具有完整的旋轉分壓功能無頻閃.
可以通過控制交流接觸器來控制大電流.
旋轉調光開關或按鈕調光開關二種型號可供選擇.
適用於低壓控制並接合有0-10V接口的可調光LED鎮流器一起使用.
產品必須按照調光器線路圖正确連接.
Remark: Must be according to the dimmer of the wiring diagrams correct wiring.
