LED Down Light

週二, 15 十二月 2015 06:16 LED 筒燈/天花燈 8W/12W16W/24W Lighting - LED Recessed Spot Light

知慳惜電

SINLOON^®		LED 筒燈/天花燈

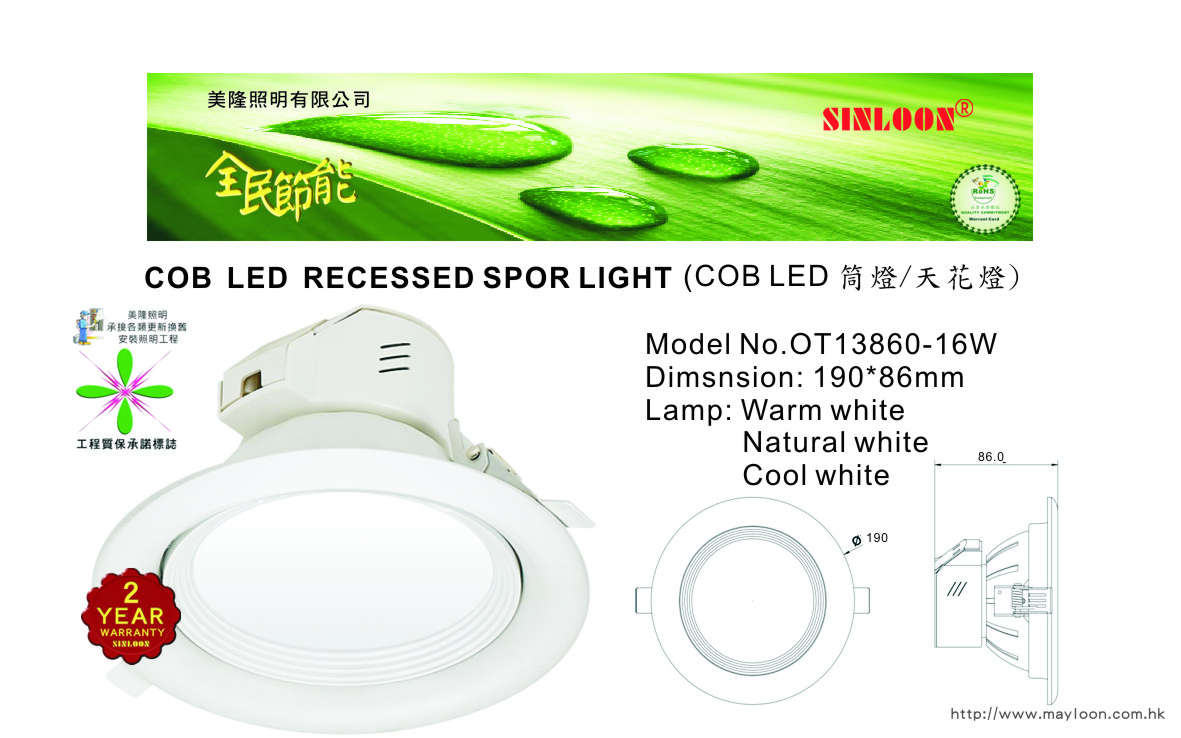

		LED Down Light - 138
Data Specification Download 8W/12W Download 16W/24W



erformance & parameter of product
Model No.				OT13830-8W		OT13840-12W		OT13860-16W		OT13880-24W
Performance Parameter		Lamp		Warm white/Natural white/Cool white				Warm white/Natural white/Cool white
		Lumen (lm)		550 lm/600lm/650lm		950lm/1000lm/1100lm		1300lm/1400lm/1500lm		1900/2000lm/2100lm
		Color temperature（K)		3000K/4200K/6500K				3000K/4200K/6500K
		CRI		≥70		≥70		≥70		≥70
		Type of LED		SMD 2835		SMD 2835		SMD 2835		SMD 2835
		Beam angle		111°		111°		107°		107°
		Decay rate (%)		less than 3% within 1000 working hours				less than 3% within 1000 working hours
		Total power (W)		7-9W		11-13W		15-17W		23-26W
		Lifespan (Hrs)		≥30000Hrs		≥30000Hrs		≥30000Hrs		≥30000Hrs
		High voltage testing		1750Vac/1min		1750Vac/1min		1750Vac/1min		1750Vac/1min
LED parameter		Lighting efficiency		100LM/W		100LM/W		100LM/W		100LM/W
		Chip quantity		40PCS		60PCS		80PCS		120PCS
		Series-parallel way		8S5P		12S5P		16S5P		24S5P
		Voltage		24-26VDC		36-40VDC		48-53VDC		72-80VDC
		Current		300mA		300mA		300mA		300mA
Driver Parameter		Input parameter		100～240VAC，50/60Hz				100～240VAC，50/60Hz
		Power factor		0.48		0.48		0.9		0.9
		Output parameter		21-32VDC,300mA		30-42VDC,300mA		42-55VDC,300mA		70-85VDC,300mA
Structure Parameter		Material		Cast-Aluminium		Cast-Aluminium		Cast-Aluminium		Cast-Aluminium
		Dimension		¢130*78.5mm		¢160*83.5mm		¢190*86mm		¢220*93.4mm
		Cut-out		¢100mm		¢120mm		¢160mm		¢170mm
		Protection class		calss Ⅱ		calss Ⅱ		calss Ⅱ		calss Ⅱ
		Ingress Protection		IP20		IP20		IP20		IP20
Environment Parameter		Application		hotel、home-lighting、recreation place、supermarket、office building
		Operating temperature		-25℃ ～ 50℃、10% ～ 90% R.H.				-25℃ ～ 50℃、10% ～ 90% R.H.
		Storage temperature		-30℃ ～ 85℃、0% ～ 95% R.H.				-30℃ ～ 85℃、0% ～ 95% R.H.
Packing Specification		Qty/Ctn		8PCS/Ctn		8PCS/Ctn		8PCS/Ctn		8PCS/Ctn
-	-	-	-	-	-	-	-	-	-
----------------------------		----------------------------		----------------------------		----------------------------		----------------------------		----------------------------
