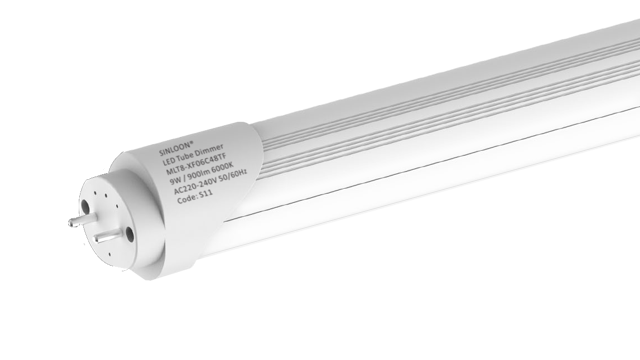

T8 LED Tube Dimmer (Aluminium Alloy + Plastic)

SINLOON^®	T8 可調光LED 燈管					鋁塑管
	T8 LED Tube Dimmer - Triac volume				Aluminum + Plastic pipe
Hong Kong Brand
Data Specification: T8 LED Tube Dimmer Series
Feature:					T8 LED Tube Dimmer
Length Dimension:	Standard size.
Case material:	Aluminum + Plastic pipe end cap
Dimmer:	Triac volume
Lumen:	100lm/W
On lighting:	Transient to start
Input voltage:	AC85~260V 50/60Hz
Light soure:	LED SMD2835 chip diode
Shine:	To product light not flashing
LEDs Lifespan:	30,000hrs

Characteristic Parameters:
型號 Model No.:			MLT8-XF06C48LT		MLT8-XF09C72LT		MLT8-XF12C96LT
尺寸 Dimension (L*Φ): Φ/Circular Type			Φ28*600mm		Φ28*900mm		Φ28*1200mm
實際長度 Actual length Size:			598mm		898mm		1198mm
鋁基板寬度 PCB width :			7mm		7mm		7mm
輸入電壓 Input Voltage:			AC85V~260V 50/60Hz
供電電壓 Power Side:			Double-ended		Double-ended		Double-ended
類型 LED Type:			0.2W SMD2835		0.2W SMD2835		0.2W SMD2835
數量 LED Quantity:			48pcs		72pcs		96pcs
功率 System Power (W)			9W±5%		13W±5%		18W±5%
光通亮 LED Flux (lm) /			900lm ±5%		1300lm ±5%		1200lm ±5%
燈罩 Frost cover			Translucent		Translucent		Translucent
功率系數 Power Factor:			>0.9		>0.9		>0.9
色溫 Color Temperature (K)			3000K ±7% / 6500K ±8%
顯色指數 Color Rendering Index:			>80Ra		>80Ra		>80Ra
發光角度 Illumination Angle:			180^o		180^o		180^o
燈源壽命 LEDs Lifespan:			30000hrs		30000hrs		30000hrs
環境溫度 Ambient Temperature (℃):			-5℃ ~ 45℃
認證 Certificate:			CE/EMC
包裝尺寸 Carton size:			655210210mm		955210210mm		1250210210mm
包裝數量 Quantity:			25pcs/Cts		25pcs/Cts		25pcs/Cts
包裝重量 Weight			7Kgs/Ctn		10Kgs/Ctn		12Kgs/Ctn
本產品只適用於LED燈管電路,可以調光(如圖所示)。
This product is only suitable for LED light circuits and can be dimmed。
		.		.





*在本規格書裡如果您未能找或參數指標未能達到你的應用要求即未在本規格書裡表現出來請與我們聯絡.
* If you have any question which is not is in the specification, please contact us.
