2A Schottky Barrier Rectifier Diode
Rating
Case: SMA/DO-214AC
Voltage: 20V ~ 100V
Current: 2.0A
Type Series Device IF(AV) Vrrm Range
DO-41 IN5817~IN5819 1A 20V,30V,40V.
DO-41 SB220S~SB2100S 2A 20V ~ 100V
SMA/DO-214AC SR22 – SR210 2A 20V ~ 100V
DO-201AD SB520 – SB5100S 5A 20V ~ 100V
TO-220A SB820-SB8100 8A 20V ~ 100V
TO-220 SB820CT~SB8100CT 8A 20V ~ 100V
TO-263 SB820D~SB8100D 8A 20V ~ 100V
TO-263 SB820DC~SB8100DC 8A 20V ~ 100V
ITO-220A SB820F~SB8100F 8A 20V ~ 100V
ITO-220 SB820FCT~SB8100FCT 8A 20V ~ 100V
TO-220A SB8150-SB8200 8A 150V ~ 200V
TO-220 SB8150CT~SB8200CT 8A 150V ~ 200V
TO-263 SB8150D~SB8200D 8A 150V ~ 200V
TO-263 SB815DC~DC8200DC 8A 150V ~ 200V
ITO-220A SB8150F~SB8200F 8A 150V ~ 200V
ITO-220 SB8150FCT-SB8200FCT 8A 150V ~ 200V

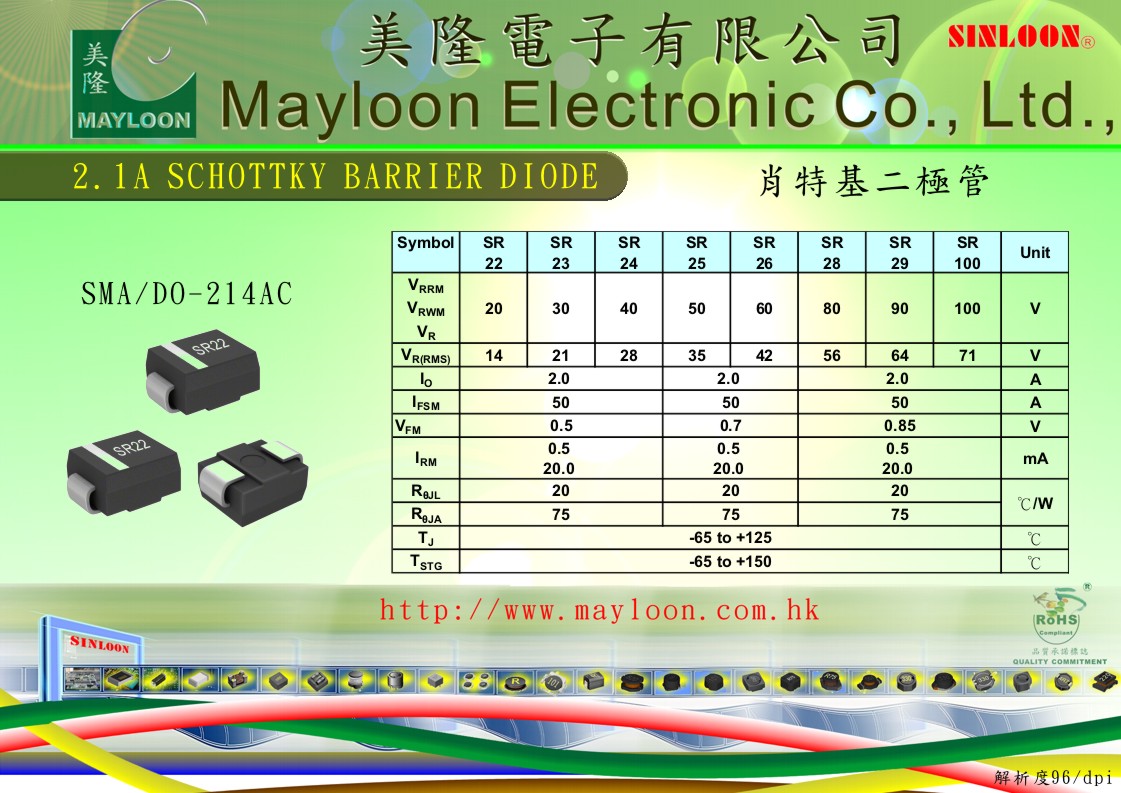

2A SR22 - SR210S (20V-100V) SMA / DO-214AC
□ Feature
◆ Schottky Barrier Chip
◆ Ideally Suited for Automatic Assembly
◆ Guard Ring Die Construction for Transient Protection
◆ Surge Overload Rating to 50A Peak
◆ Low Power Loss, High Efficiency
◆ For Use in Low Voltage Application
◆ Plastic Case Material has UL Flammability Classification Rating 94V-0)
□ Mechanical Data
◆ Case: SMA/DO-214AC, Moldes Plastic
◆ Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
◆ Polarity: Cathode Band or Cathode Notch
◆ Weight: 0.064 grams (approx)
◆ Mounting : Type Number
◆ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
