8A Schottky Barrier Rectifier Diode

8A SB820DC-SB8100DC (20V ~ 100V)

Rating

Case:  TO-263

Voltage: 20V ~ 100V

Current: 8.0A

Type Series Device IF(AV) Vrrm Range

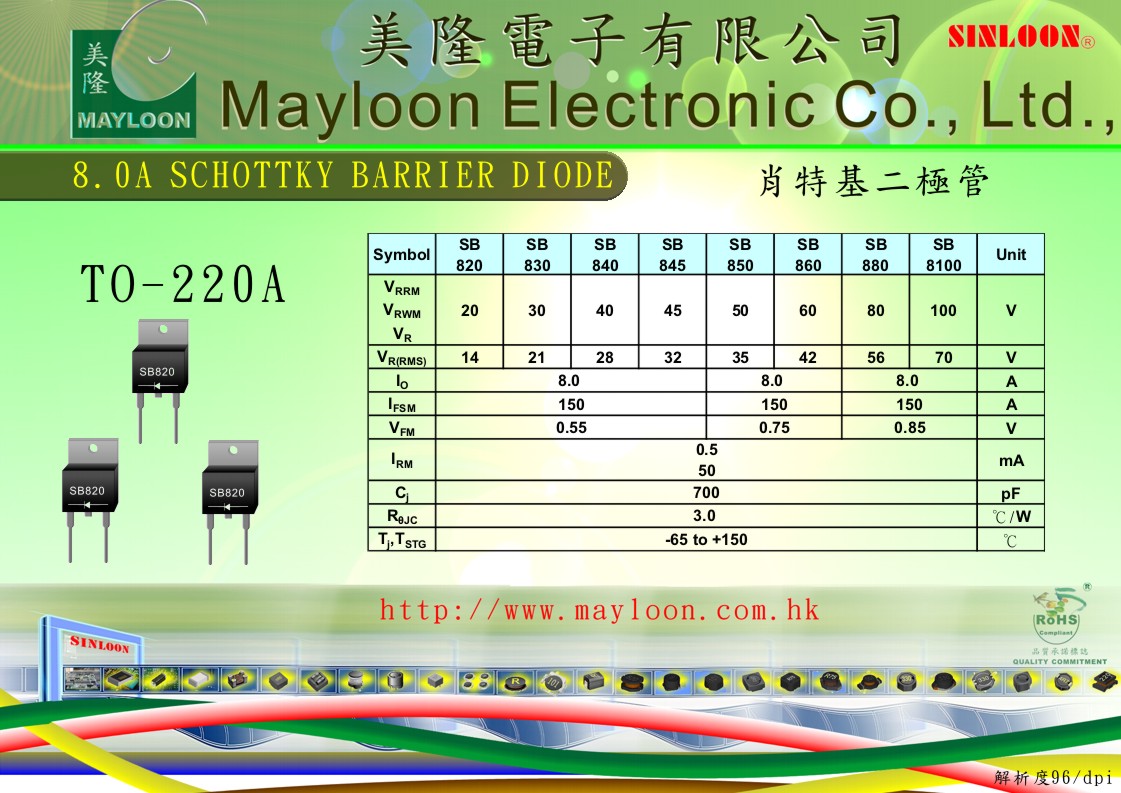

TO-220A SB820-SB8100 8A 20V ~ 100V

TO-220 SB820CT~SB8100CT 8A 20V ~ 100V

TO-263 SB820D~SB8100D 8A 20V ~ 100V

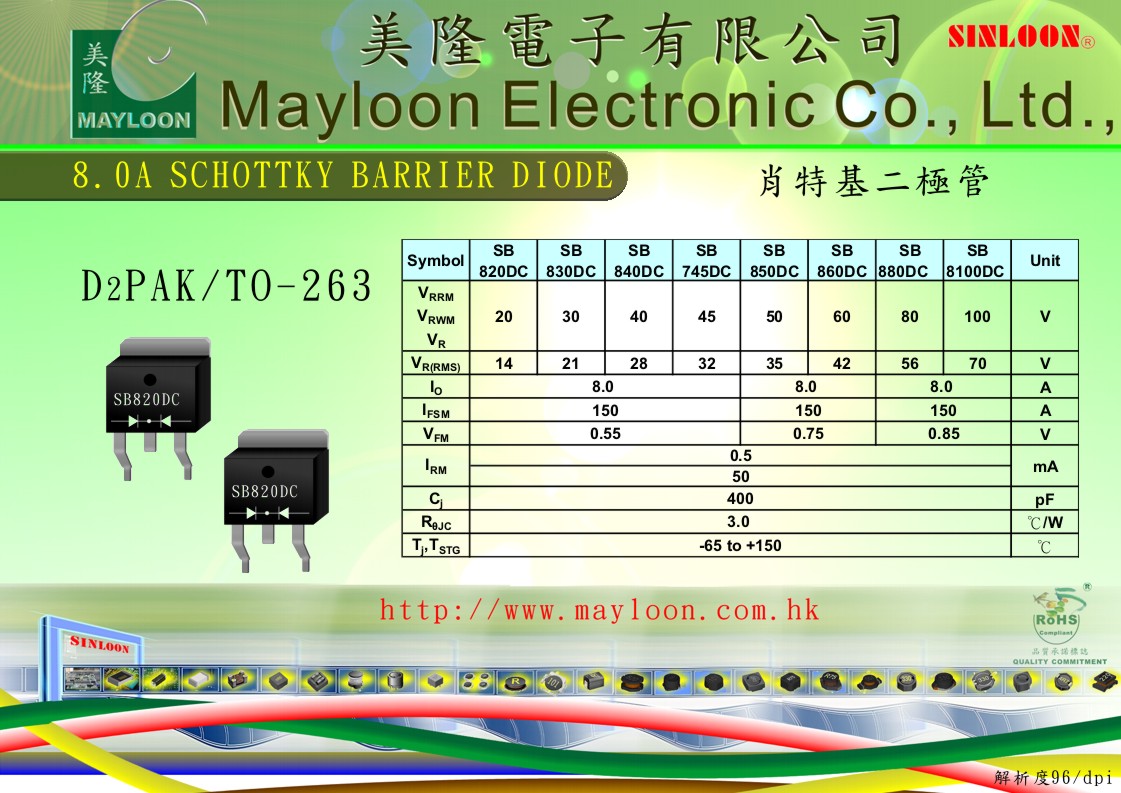

TO-263 SB820DC~SB8100DC 8A 20V ~ 100V

ITO-220A SB820F~SB8100F 8A 20V ~ 100V

ITO-220 SB820FCT~SB8100FCT 8A 20V ~ 100V

TO-220A SB8150-SB8200 8A 150V ~ 200V

TO-220 SB8150CT~SB8200CT 8A 150V ~ 200V

TO-263 SB8150D~SB8200D 8A 150V ~ 200V

TO-263 SB815DC~DC8200DC 8A 150V ~ 200V

ITO-220A SB8150F~SB8200F 8A 150V ~ 200V

ITO-220 SB8150FCT-SB8200FCT 8A 150V ~ 200V

Feature

Schottky Barrier Chip

Guard Ring for Transient Protection

Low Forward Voltage Drop

Low Reverse leakage Current

High Surge Current Capability

Plastic Material has UL Flammability Classification 94V-0

Mechanical Data

Terminals: Plated Leads Solderable per MIL-STD-202, Method 208

Polarity: See Diagram

Weight: 2.24 grams (approx)

Mounting Position: Any

Mounting posution : Any

Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number.
